Top2 Vortex
Top2 Vortex
The TOP-VORTEX pump
suitable for use with dirty water that is not chemically aggressive towards the materials from which the pump is made.
As a result of the design solutions that have been adopted, such as the complete cooling of the motor and the shaft with double seal, these pumps are easy to use and reliable.
They are suitable for use in applications such as clearing dirty water, emptying tanks, discharging domestic waste water, and for emptying collection traps containing suspended solids up to a maximum of Ø 20 mm.
Features
Liquid type: Dirty water
Uses: domestic
Applications: liquids transfer, emptying tanks, drainage, dirty water - slightly solid particles
typology: submersible
Family: dirty water drainage
Performance Range:
- Flow rate up to 170 l/min (10,2 m³/h)
- Head up to 8,70 m
Application Limit:
- Temperature of the liquid to +40 °C
(Maximum liquid temperature +90 °C for a maximum
of 3 minutes intermittent service)
- 3 m maximum immersion depth
(with a sufficiently long power cable)
- Maximum liquid temperature +40 °C
- Passage of suspended solids up to Ø 25 mm
- Suction down to 25 mm

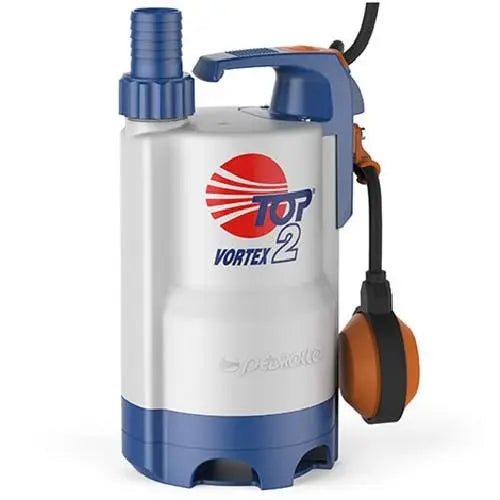

Top2 Vortex - submersible water Pump by Pedrollo
